Compatible sizes: 3 to 12 inches

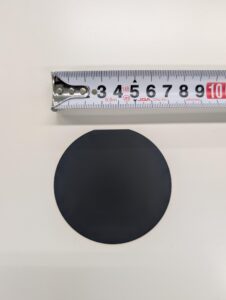

3 inch BDD

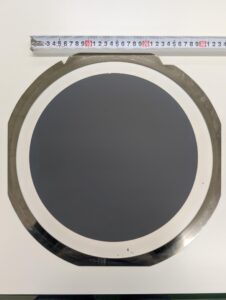

12 inch BDD

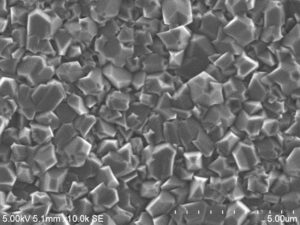

● Particle size: Approx. 2 μm
*Please consult us for 1 μm requirements.

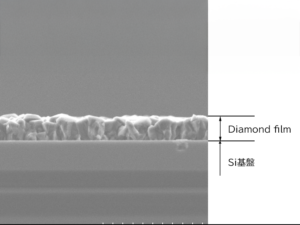

● Film thickness: Approx. 2 μm
● B (Boron) doping concentration
1E20 cm-3 or higher
Standard Products
| Size | Minimum Unit | Shipping Format |
|---|---|---|
| 3 inch | 1 unit | Tape-mounted, inserted between plastic corrugated boards |
| 12 inch | 1 unit | Tape-mounted, packed in a wafer shipper |

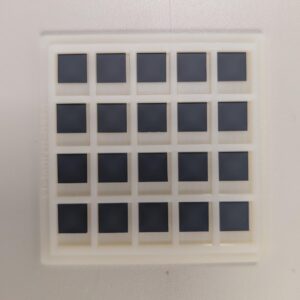

| 6.4 x 6.4 mm | 20 chips | Case packaging |
*Custom orders other than the above are also available. Please feel free to contact us.
7 x 8 mm Case Packaging
6.4 x 6.4 mm
Tape-mounted, plastic corrugated board packaging

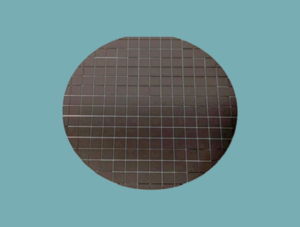

6.4 x 6.4 mm 3 inch BDD on Si
